A Different Perspective: MPR-Curves in i-Dixel

April 20, 2021 · Dental TI

J. Morita’s 3D viewing and treatment planning software, i-Dixel, offers a robust set of tools to review scans and plan treatment digitally. When a scan is loaded, the data is presented in the “volume view” with windows for axial, coronal, sagittal, and 3D perspectives:

Four-panel CBCT volume view showing coronal, sagittal, and axial cross-sections alongside a 3D skull rendering, with the viewing tool panel on the right

The MPR (Multi-Planar Reconstruction) and Dual-MPR tabs allow for different (and arguably more precise) perspective views to analyze a CBCT volume and plan treatment. In either MPR tab, the user draws an “MPR line/curve”, along which the software places perpendicular “slices” at adjustable intervals which allow the user to progress through cross-sections of the patient’s anatomy in a slice-by-slice perspective. This is a useful tool— for example— to analyze discrete regions of interest, trace the mandibular canal for implants, and verify the angle and depth of a planned implant.

Below, we will explore some of the different views that can be created by tracing an MPR curve.

Extracting a 2D Pan from a 3D Volume

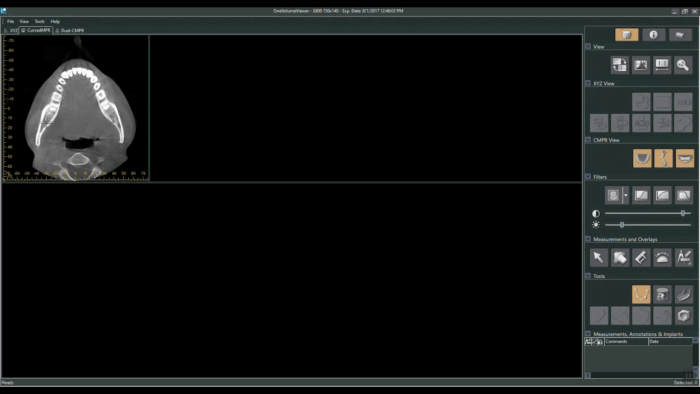

Axial cross-section of the dental arch in the CBCT viewer's upper-left panel, with the panoramic extraction panel beside it awaiting the traced MPR curve

By tracing our MPR curve along the entire arch, the user is able to create an extracted panoramic image from their 3D volume. To the right of the axial view (in which the MPR curve is drawn), the software compiles a flattened or panoramic image of whatever anatomy the MPR curve spans. If one draws a curve that spans the entire arch, the software will give a panoramic view of the patient’s mouth.

*Useful Tip* The number of slices displayed in the bottom window can be adjusted by changing the “Cross Section View Mode” under the Settings section of the viewer:

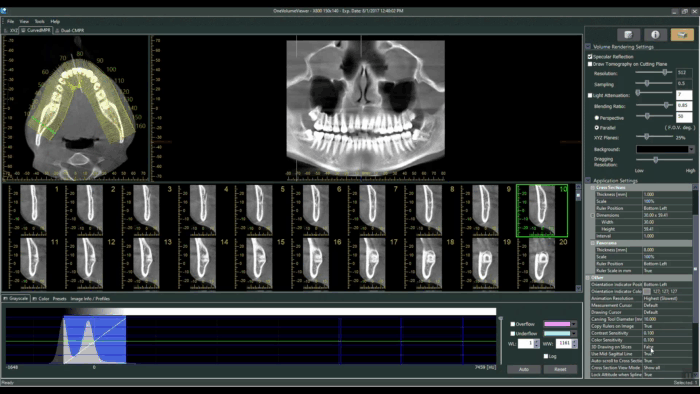

CBCT viewer showing the traced arch curve highlighted in yellow, the resulting panoramic reconstruction, a row of numbered cross-section slices, and the Volume Rendering Settings panel with a pixel histogram open on the right

Mesial-Distal

Tracing an MPR-Curve along a single tooth, implant site, or a few teeth, will provide the user with coronal-perspective set of slices to progress through the mesial-distal aspects of the anatomy. This view is especially useful for mapping the mandibular canal for lower-arch implant cases.

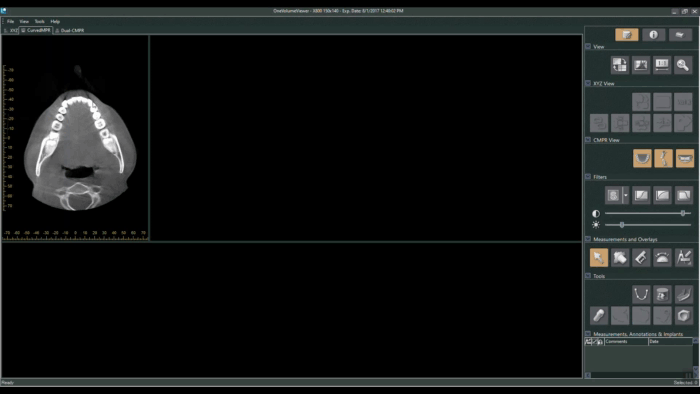

Axial cross-section of the dental arch in the CBCT viewer's upper-left panel, with the coronal slice-view panel below it ready for a mesial-distal MPR curve

Buccal-Lingual

Tracing an MPR line across a tooth or implant site from the buccal to lingual side will allow the user to progress through the area from a sagittal perspective:

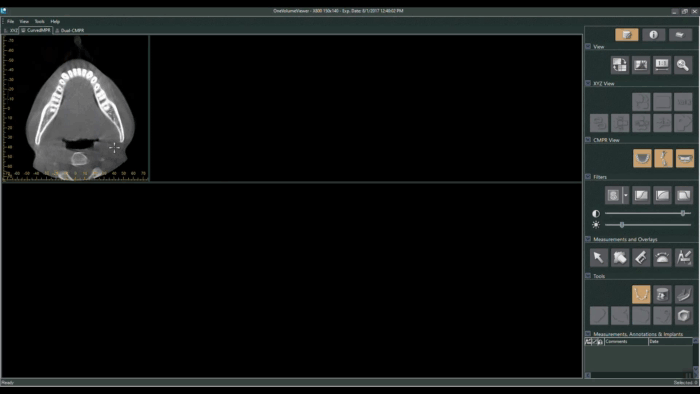

Axial cross-section of the dental arch in the CBCT viewer, with the sagittal slice-view panel below it ready for a buccal-lingual MPR line

Radial

The MPR curve can also be drawn into a shape. Creating a circle around a tooth will allow the user to examine circumferential aspects of the targeted area:

Axial cross-section of the dental arch in the CBCT viewer's upper-left panel, with the slice-view panel below it ready for a circular MPR curve traced around a tooth

Root-Crown (Long Axis)

The user is also able to rotate the axial view in the top-left window to a coronal perspective by clicking and dragging their mouse cursor. Drawing the MPR line from a tooth’s root to its crown in this view will give us axial slices to progress through. This view can be very useful for locating missed canals, or examining teeth/implants that may have issues related to the patient’s sinus cavity.

Axial cross-section of the dental arch in the CBCT viewer, shown before the view is rotated to a coronal perspective for tracing a root-to-crown MPR line

Dual-MPR

The Dual-MPR tab allows the user to draw two MPR lines for two different slice-by-slice perspectives. Below, we draw a mesial-distal and buccal-lingual MPR curve to allow us to view the tooth through both coronal and sagittal slices. The Dual-MPR function is especially ideal for verifying the depth and angle of a planned implant from multiple perspectives.

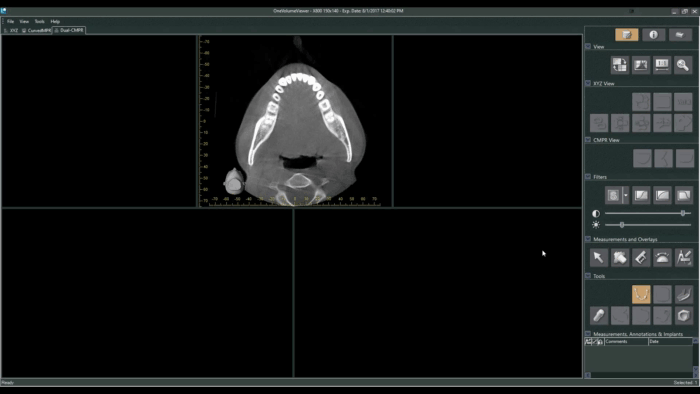

Dual-MPR tab in the CBCT viewer showing the axial arch view at top and two empty slice-view panels split side by side below, ready for two independently traced MPR curves

MPR curves can provide a more focused view of anatomical landmarks, and allow the user to create more diagnostic images for case presentation. For planning implants and mapping the mandibular canal, the MPR or Dual-MPR view is usually preferable to the volume view as they allow for a more precise view of the specific area.
